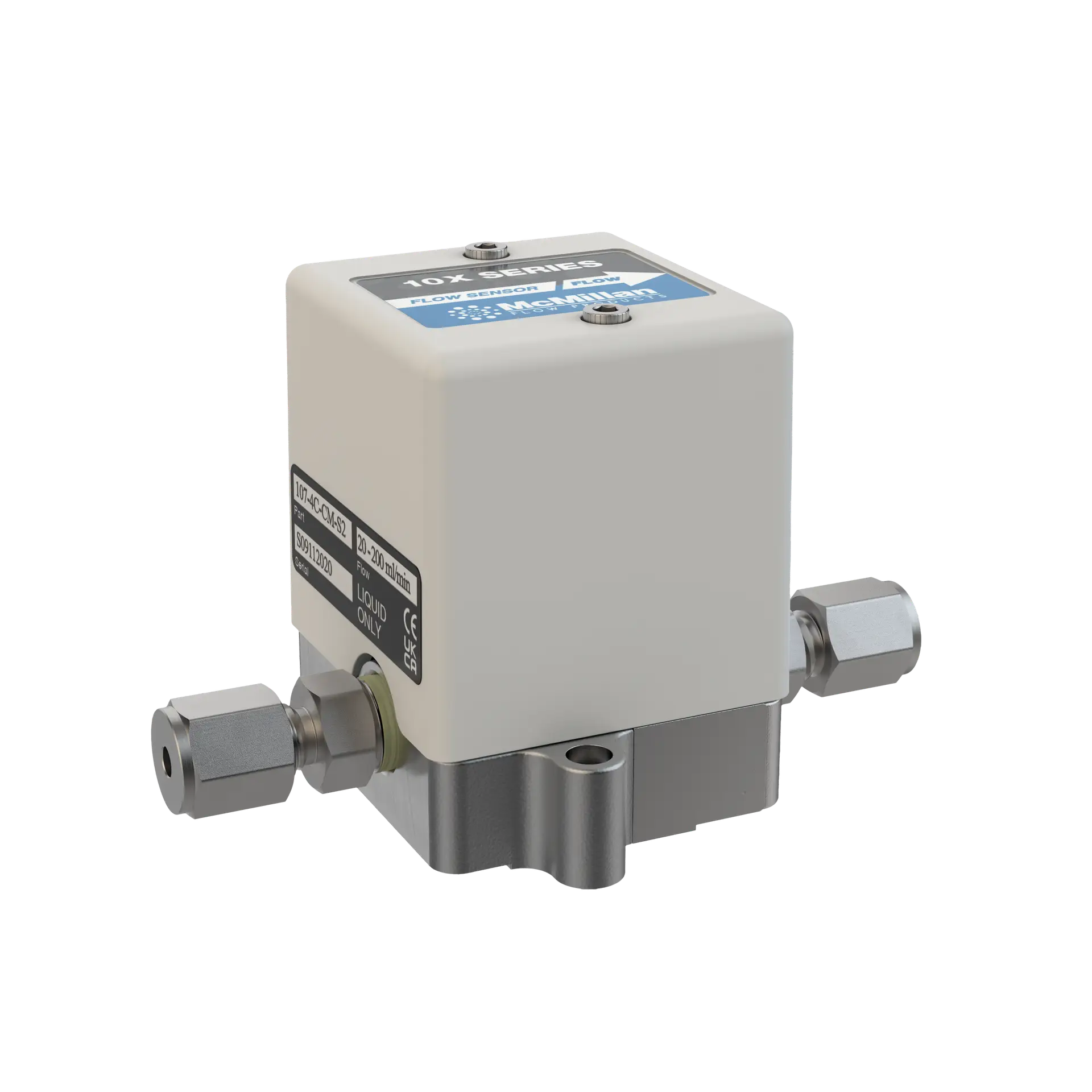

McMillan 107 Flow Sensors feature stainless steel construction and 4-20 mA outputs. Units are available that measure liquids as low as 13 mL/minute and as high as 10 L/minute. Full scale accuracies of ±1.0% or better are standard.
McMillan 107 Flow Sensors feature stainless steel construction and 4-20 mA outputs. Units are available that measure liquids as low as 13 mL/minute and as high as 10 L/minute. Full scale accuracies of ±1.0% or better are standard.
A wide variety of liquids may be measured. Repeatable results are achieved using a patented Pelton-type microturbine wheel. This proven design has been providing precision results since 1988 and has developed a well deserved reputation for continuous operational service for many years without failure.
Because of the compact size and economical cost of these products, the 10X Series Flow Sensors are suitable for a wide variety of industrial, commercial, laboratory and O.E.M. applications. Some sample applications include measurement of hydrocarbon fluids, fuels, light oils, solvents, coolant, pesticides, mild acids, alkalis, and deionized water. Several power and output configurations are available, including both pulse and analog outputs. NIST Traceable certificates are available on most models.
Units are available that measure liquids as low as 13 mL/minute and as high as 10 L/minute.
Units require 22 to 25 VDC power.
The Model 107 comes standard with a 4-20 mA output.
Standard accuracy specification of ±1% F.S. including linearity. NIST traceable calibration certificates are optional.
Units feature compression tube fittings. Alternate fitting types and sizes may be selected as noted in the Product Configurator.
All models have an integrated 4-pin male connector. To complete connections, a cable assembly should be ordered.
The Model 107 features a stainless steel body and stainless steel fittings.
A number of remote displays are also available for use with any flow sensor and flow meter. Please request further information from the factory.
Analog Output: ±1.0% Full Scale
±0.2% Full Scale
500 psig (34 barg)
Operating Range: 5 - 55ºC
Storage Range: 0 - 70ºC
±0.2% F.S. or less per ºC
316L SS
303 SS
Epoxy
Glass
Sapphire
FKM
25 microns or less
Low viscosity (<15 cS), translucent or transparent, degassed
Not available
Not available
Non-isolated
Current loop should not exceed 500 ohms
22 to 25 VDC @ 65 mA
Typically <1 second to 67% of final value
CE Approved
89 / 336 / EEC (EN 55011 & EN 50082-1)
73 / 23 / EEC Low Voltage Directive
UKCA
IP10 (NEMA 1)
1 Year Limited
