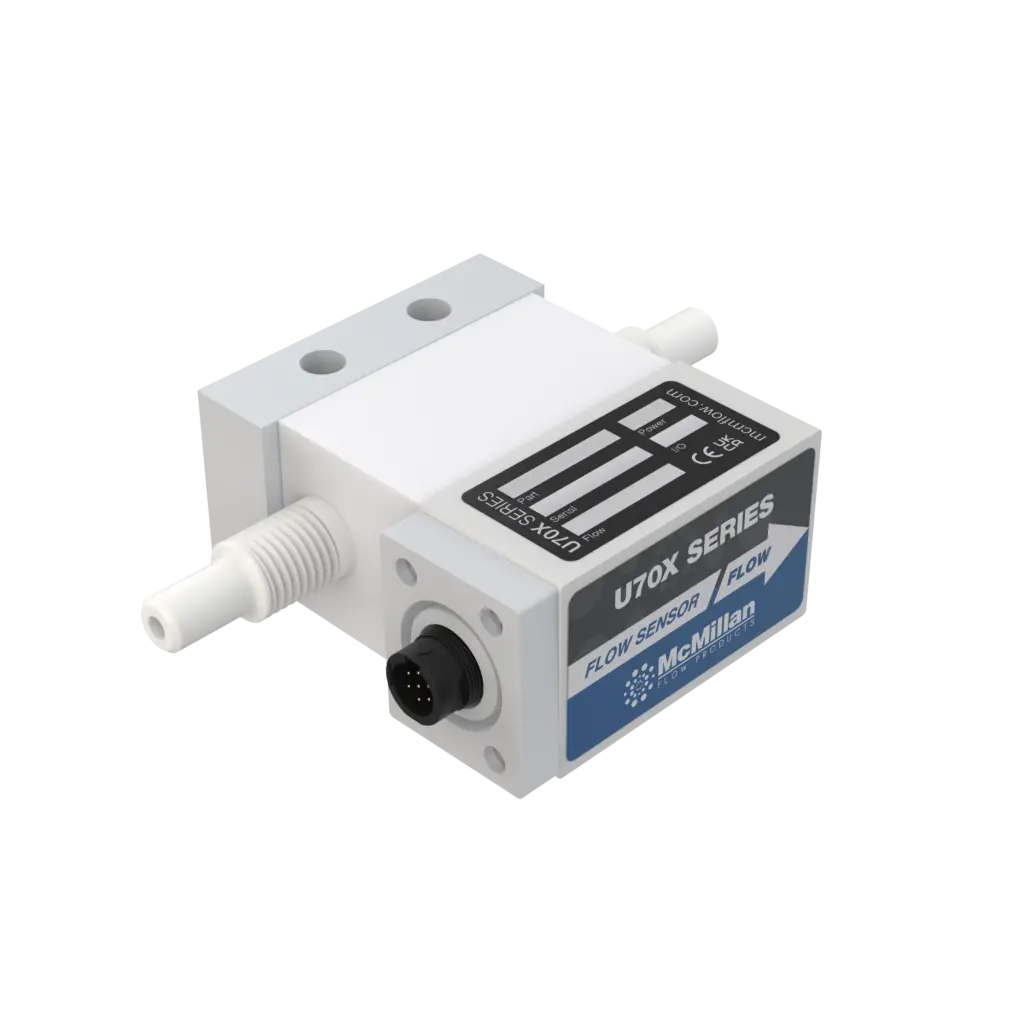

McMillan Model U709 will precisely measure very low flow rates of virtually any photoresist chemical, whether a short burst of flow or a continuous flow. Dispenses as short as 500 milliseconds and volumes as low as 0.1 grams can be detected repeatably.

The U708 is a compact PTFE liquid flow sensor featuring a straight flow path for inline fluid connections and an analog output. McMillan U70X Series Flow Sensors are capable of measuring extremely low flow rates of high-purity or corrosive media. Units are available that measure liquids as low as 13 mL/min and as high as 10 L/min.

The U707 is a compact PTFE liquid flow sensor featuring a straight flow path for inline fluid connections and a pulse output. McMillan U70X Series Flow Sensors are capable of measuring extremely low flow rates of high-purity or corrosive media. Units are available that measure liquids as low as 13 mL/min and as high as 10 L/min.

The U706 is a PTFE liquid flow sensor featuring a straight flow path for inline fluid connections and an analog output. McMillan U70X Series Flow Sensors are capable of measuring extremely low flow rates of high-purity or corrosive media. Units are available that measure liquids as low as 13 mL/min and as high as 50 L/min.

The U705 is a PTFE liquid flow sensor featuring a straight flow path for inline fluid connections and a pulse output. McMillan U70X Series Flow Sensors are capable of measuring extremely low flow rates of high-purity or corrosive media. Units are available that measure liquids as low as 13 mL/min and as high as 50 L/min.

McMillan U803 Compact Flow Controllers will precisely measure and control flow of virtually any fluid, achieving rates as low as 13 mL/min or as high as 1,000 mL/min. Wetted materials are limited to PTFE, FFKM, and sapphire.

McMillan S114 Flow Meters are constructed from stainless steel, rated for up to 500 psig (34.5 barg), and are capable of measuring extremely low liquid flow rates from 13 mL/min up to 10 L/min with a full scale accuracy of ± 1.0% or better.

McMillan S112 Flow Meters are constructed from brass, rated for up to 500 psig (34.5 barg), and are capable of measuring extremely low liquid flow rates from 13 mL/min up to 10 L/min with a full scale accuracy of ± 1.0% or better.

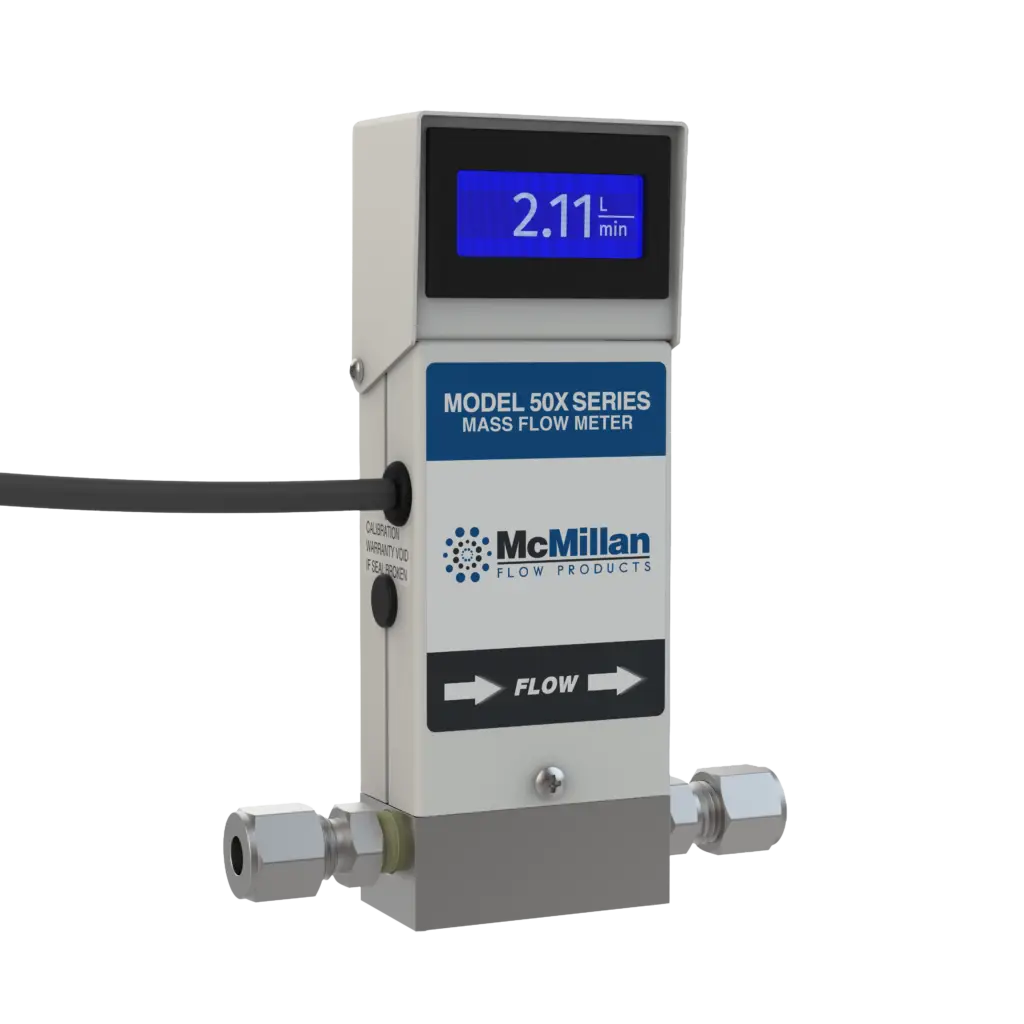

McMillan Model 50SD Mass Flow Meters feature an integrated flow rate display and are constructed from stainless steel. They are capable of measuring virtually any clean, dry gas as low as 0-20 sccm or as high as 0-100 L/minute.

McMillan Model 50S Mass Flow Meters are constructed from stainless steel and are capable of measuring virtually any clean, dry gas as low as 0-20 sccm or as high as 0-100 L/minute.
